Medical ZPL20-MED

Medical ZPL20-MED

20W COI Compliant Recessed Rectangular Panel Light
Options

  • Rectangular LED panel light specifically designed to meet Cyanosis Observation Index requirements, an ideal lighting solution for visual cyanosis detection and healthcare applications
  • Designed with powder coated extruded aluminium frame with low glare and high transparency microprismatic diffuser
  • Suitable for mounting in metric T-Bar ceiling applications
  • Can be configured with different mounting kits - suspended, surface mounted and plaster recessed
  • CRI 92+ Medical in COI compliant 4000K option
  • Supplied with a remote driver for easy installation
Product Standards
Icons Technical RGB COI Red
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icons Technical RGB CRI92 Colour
Icon type Beam Angle var UW
Icon IP40
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 295 (W) X 12 (H) mm
Weight1250 g

General Characteristics

Family
Panel,
Medical
Surface
Ceiling
Mounting
Recessed|
Surface Mounted|
Suspended
Insulation ContactCA90
Ingress ProtectionIP40

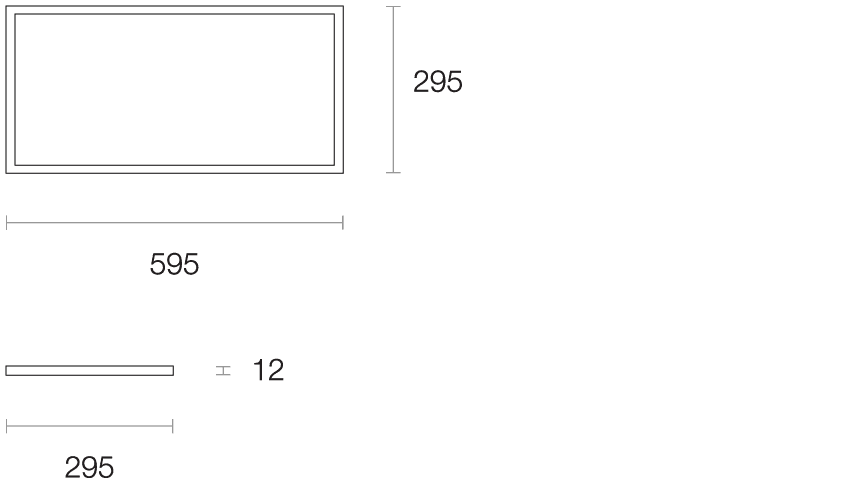

Dimensions (mm)

ZPL20 MED 2x

Technical Characteristics*

LED Power20W
LED TypeSMD
LED Lumen Output*2400 lm
Luminous Flux*2101 lm
Efficacy*93.79 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80 B10)
COI (Cyanosis Observation Index)<3.3 per AS/NZS 1680.2.5
System Power22.4W Typical
Driver ModelTrend 150020-700 (Non-dim)
* Based on: 4000K, CRI 92+ Medical
