Microled MDG6

Microled MDG6

5W Recessed Petite Adjustable Downlight
Options

  • Recessed petite adjustable LED downlight, manufactured with an aluminium body and powder coat finish
  • Small but mighty, which is precisely its biggest advantage; suitable for niche, overhead cabinets and eaves
  • Ideal lighting solution for areas that require minimalistic appeal
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red
Microled MDG6 1
Microled MDG6 4
1
2

Physical Characteristics

Dimensions⌀75 X 65 (H) mm
Weight160 g
Tilt Angle20°
CutoutCircle - 62 mm
Spring Height20 mm

General Characteristics

Family
Microled
Surface
Ceiling
Mounting
Recessed
Insulation ContactCA90
Ingress ProtectionIP20

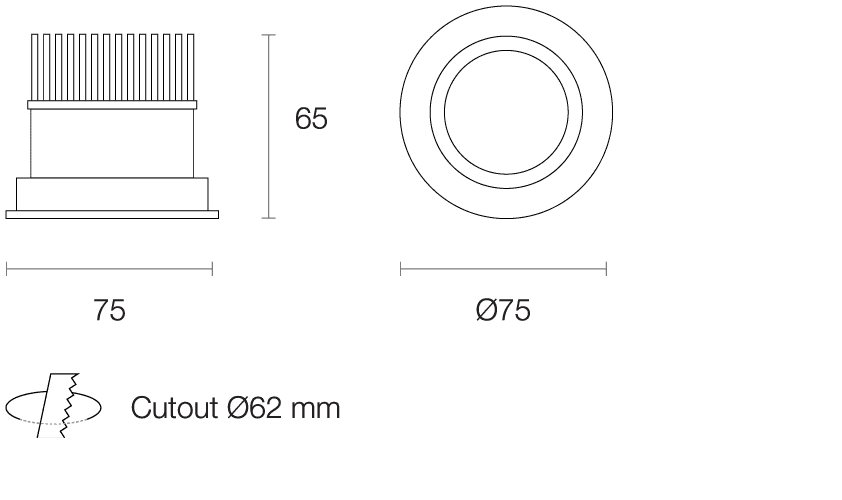

Dimensions (mm)

MDG6 2x

Technical Characteristics*

LED Power5W
LED TypeCOB
LED Lumen Output*585 lm
Luminous Flux*509 lm
Efficacy*80.79 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L70)
System Power6.3W Typical
Driver ModelTrend 150211-160 (L&T)
* Based on: 4000K, CRI 90+ Standard
