Midiled XDM25-MED

Midiled XDM25-MED

25W COI Compliant Recessed Adjustable Downlight
Options
Midiled XDM25 MED WI White Trim White Insert
Midiled XDM25 MED W BI White Trim Black Insert
Midiled XDM25 MED W GI White Trim Gold Insert
Midiled XDM25 MED W SI White Trim Silver Insert
Midiled XDM25 MED B BI Black Trim Black Insert
Midiled XDM25 MED B WI Black Trim White Insert
Midiled XDM25 MED B GI Black Trim Gpld Insert
Midiled XDM25 MED B SI Black Trim Silver Insert
Midiled XDM25 MED S SI Silver Trim Silver Insert
Midiled XDM25 MED S WI Silver Trim White Insert
Midiled XDM25 MED S BI Silver Trim Black Insert
Midiled XDM25 MED S GI Silver Trim Gold Insert
1
12

  • COI compliant recessed LED downlight with a cyanosis observation index of <3.3
  • Manufactured with an aluminium body and powder coat finish
  • Large pin fin heatsink for optimal thermal management
  • CRI 97+ Medical available in 4000K CCT option
  • Supplied with a remote driver
Product Standards
Icons Technical RGB COI Red
Icons Technical RGB Trim White Colour
Icons Technical RGB Insert White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI97
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Trim Colour
White|
Black|
Silver
Insert Colour
White|
Black|
Silver|
Gold
Dimensions⌀150 X 125 (H) mm
Weight592 g
Tilt Angle25°
CutoutCircle - 120 mm
Spring Height32 mm

General Characteristics

Family
Midiled,
Medical
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

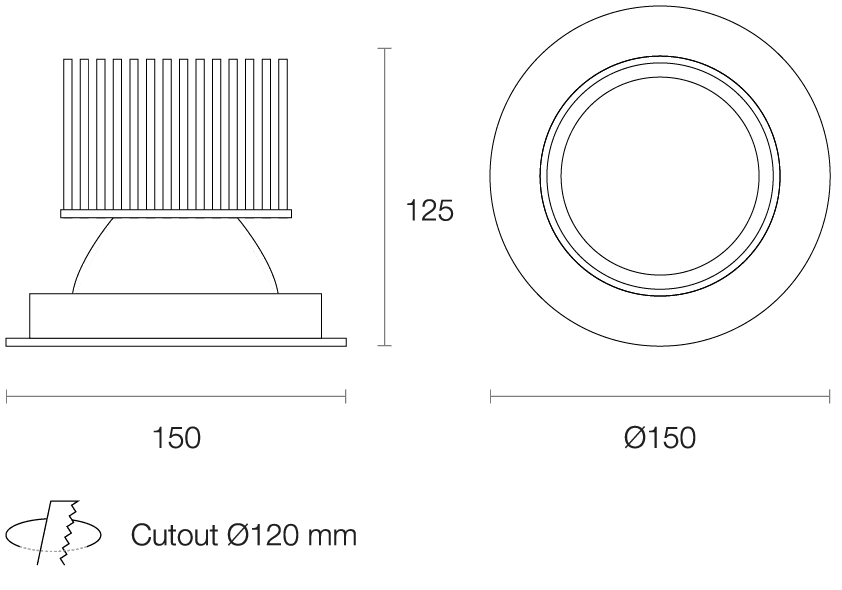

Dimensions (mm)

XDM25 MED 2x

Technical Characteristics*

LED Power25W
LED TypeCOB
LED Lumen Output*2810 lm
Luminous Flux*1970 lm
Efficacy*73.51 lm/W
Colour Temperature
4000K
Colour Technology
CRI 97+ Medical
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80 B10)
COI (Cyanosis Observation Index)<3.3 per AS/NZS 1680.2.5
Beam Angle
Wide|
Narrow|
Medium
System Power26.8W Typical
Driver ModelTrend 150020-700 (Non-dim)
Input180-265V AC 50/60 Hz
Output30-40V DC 700mA
Power Factor>0.90
Protection
OVP,
OTP,
OCP,
SCP,
OPP
Driver
Non-dimmable|
Leading & Trailing Edge|
DALI
* Based on: 4000K, CRI 97+ Medical, Wide, Non-dimmable
