Midiled XRW10

Midiled XRW10

10W Recessed Wall Washer Downlight
Options

  • Recessed fixed LED downlight featuring an asymmetric beam distribution
  • Specifically designed for illuminating and wall washing vertical surfaces
  • CRI 90+ available in 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var AS
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀105 X 99 (H) mm
Weight890 g
CutoutCircle - 100 mm
Spring Height24 mm

General Characteristics

Family
Midiled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

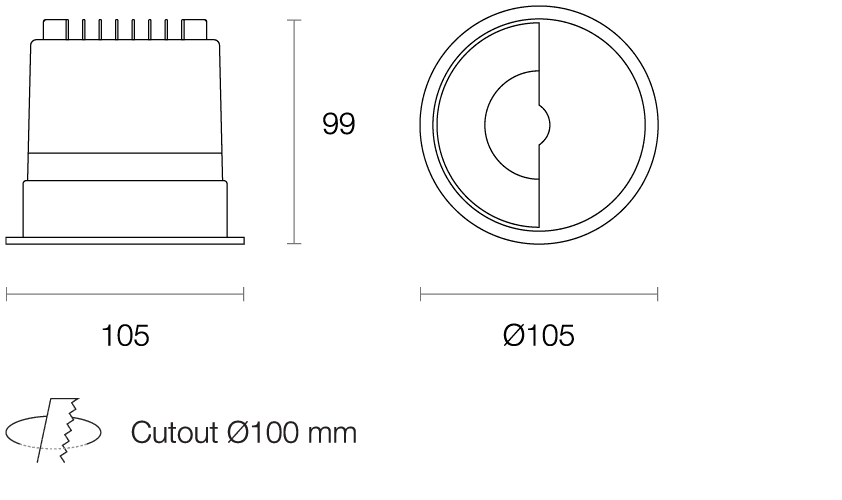

Dimensions (mm)

XRW10 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1370 lm
Luminous Flux*536 lm
Efficacy*45.04 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80 B10)
System Power11.9W Typical
Driver ModelTrend 150218-300 (L&T)
* Based on: 4000K, CRI 90+ Standard
