Miniled XDRL10

Miniled XDRL10

10W IP65 Rated Recessed Downlight
Options

  • Deep recessed LED downlight with IP65 rating, known for its thin trim profile and low glare design
  • Manufactured with an aluminium body and powder coat finish
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP65
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red
Miniled XDRL 1
Miniled XDRL 3
Miniled XDRL 2
Miniled XDRL 4
1
4

Physical Characteristics

Dimensions⌀102 X 122 (H) mm
Weight245 g
CutoutCircle - 92 mm
Spring Height50 mm

General Characteristics

Family
Miniled
Surface
Ceiling
Mounting
Recessed
Insulation ContactCA90
Ingress ProtectionIP65

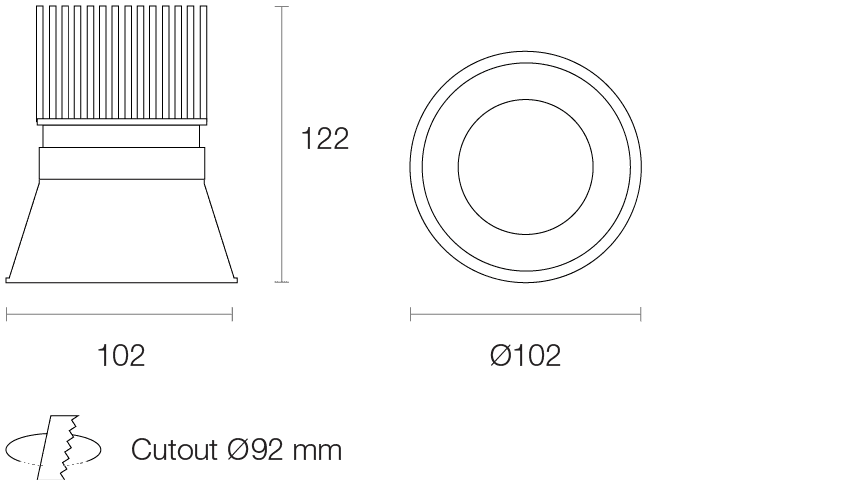

Dimensions (mm)

XDRL10 2x

Technical Characteristics*

LED Power10W
LED TypeCOB
LED Lumen Output*1450 lm
Luminous Flux*1036 lm
Efficacy*88.55 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power11.7W Typical
Driver ModelTrend 150218-300 (L&T)
* Based on: 4000K, CRI 90+ Standard
