Miniled XMA310

Miniled XMA310

3 x 10W Recessed Adjustable Rectangular Downlight
Options

  • Triple recessed LED downlight with rectangular trim
  • Also available in a single spot (XMA10) or as twin configuration (XMA210)
  • Manufactured with an aluminium body and powder coat finish
  • Designed to be fully versatile, allowing for changes in the direction and inclination angle of the light up to 35° in 2 directions
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB IC Non Grey
Icons Technical RGB Australian Red
Miniled XMA310 3
Miniled XMA310 2
1
2

Physical Characteristics

Dimensions335 (L) X 130 (W) X 110 (H) mm
Weight510 g
Tilt Angle35º x 35°
CutoutRectangle - 315 x 110 mm
Spring Height21 mm

General Characteristics

Family
Miniled
Surface
Ceiling
Mounting
Recessed
Insulation ContactNon-IC
Ingress ProtectionIP20

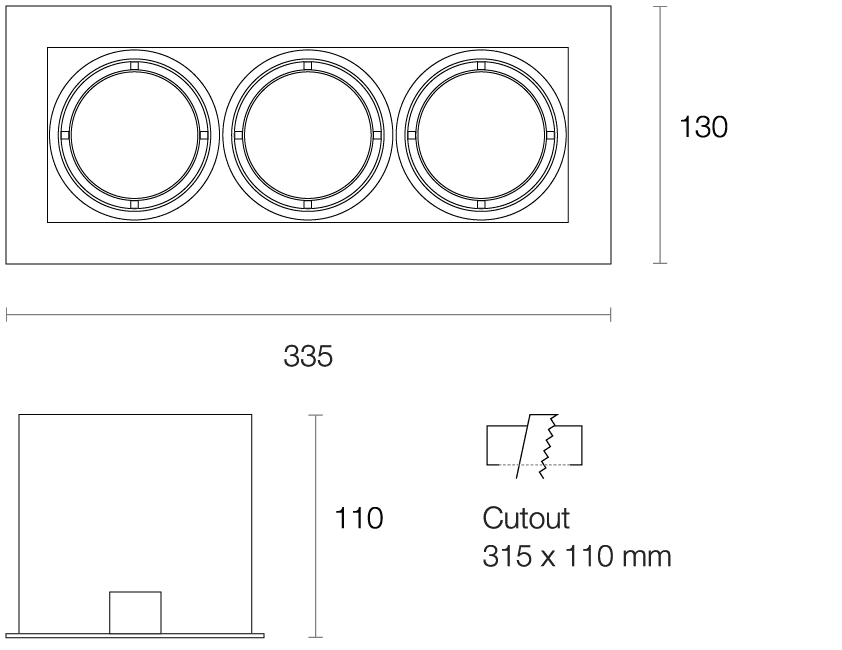

Dimensions (mm)

XMA310 2x

Technical Characteristics*

LED Power3 x 10.5W
LED TypeCOB
LED Lumen Output*4350 lm
Luminous Flux*3426 lm
Efficacy*97.61 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80)
System Power35.1W Typical
Driver ModelTrend 150218-300 (L&T) x3
* Based on: 4000K, CRI 90+ Standard
