Panel ZPX15

Panel ZPX15

15W IP65 Rated Recessed Rectangular Panel Light
Options

  • Rectangular LED panel light manufactured from powder coated extruded aluminium frame with low glare and high transparency micro-prism diffuser
  • Designed with a sealed face to achieve an IP65 rating
  • Can be configured with different mounting kits - suspended, surface mounted and plaster recessed
  • Suitable for mounting in metric T-Bar ceiling applications
  • CRI 80+ available in 4000K CCT option
  • Supplied with a remote driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI80
Icon type Beam Angle var UW
Icon IP65
Icons Technical CMYK ICCA90 Grey
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions595 (L) X 295 (W) X 10 (H) mm
Weight1250 g

General Characteristics

Family
Panel
Surface
Ceiling
Mounting
Recessed|
Surface Mounted|
Suspended
Insulation ContactCA90
Ingress ProtectionIP65

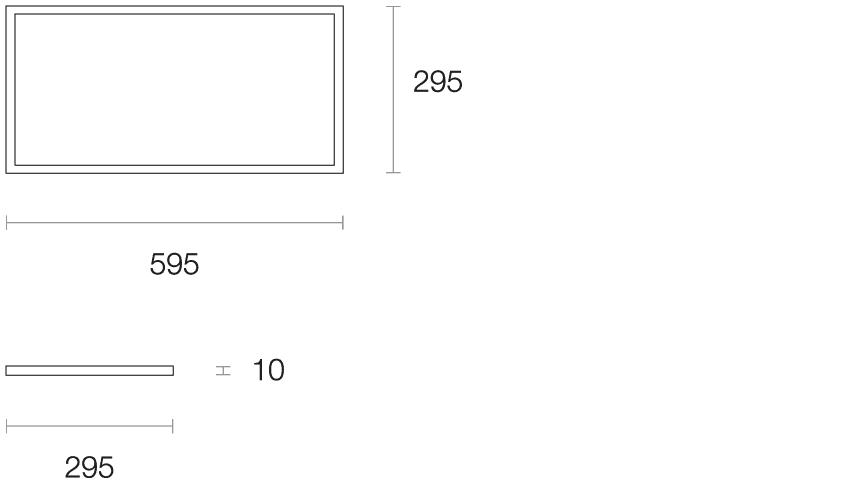

Dimensions (mm)

ZPX15 1 2x

Technical Characteristics*

LED Power15W
LED TypeSMD
LED Lumen Output*2125 lm
Luminous Flux*1720 lm
Efficacy*86.00 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power20W Typical
Driver ModelTrend 150020-700 (Non-dim)
* Based on: 4000K, CRI 80+ Standard
