Surface XSI15

Surface XSI15

15W Surface Mounted Square Downlight
Options

  • Surface mounted square LED downlight with high efficiency collimator lens; available with optional honeycomb lens
  • Die cast aluminium body with integrated heatsink design for optimal thermal management
  • CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions90 (L) X 90 (W) X 157 (H) mm
Weight1300 g

General Characteristics

Family
Surface
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

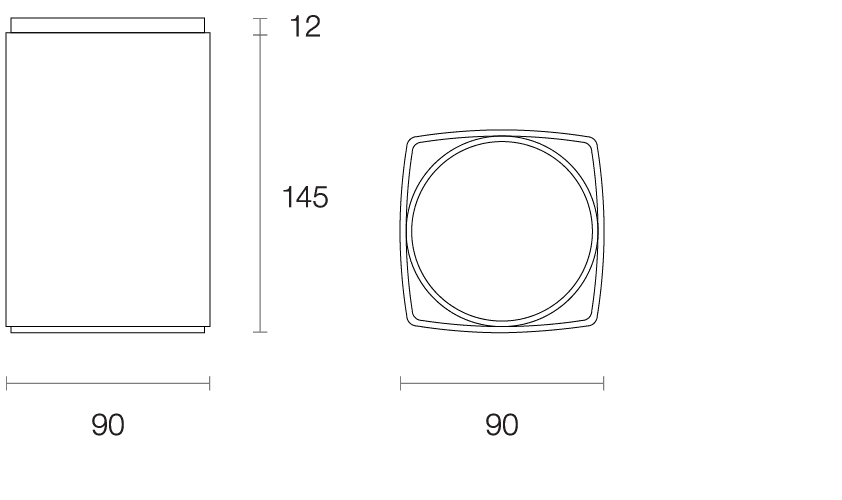

Dimensions (mm)

XSI15 2x

Technical Characteristics*

LED Power15W
LED TypeCOB
LED Lumen Output*2004 lm
Luminous Flux*1460 lm
Efficacy*80.22 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power18.2W Typical
Driver ModelTrend 150079-500 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
