Track Spot XTN15E

Track Spot XTN15E

15W Sleek Track Spot
Options
Track Spot XTN15 E B Black Trim
Track Spot XTN15 E W White Trim
1
2

  • Track mounted sleek LED spotlight known for its high colour rendering and excellent glare control
  • Ceramic Nichia LED chip with a high efficiency collimating lens
  • Can be configured with Nichia’s award winning Optisolis™ LED
  • CRI 94+ and CRI 98+ Optisolis available in 2700K, 3000K, 3500K and 4000K CCT options
  • Supplied with a 3-circuit track adapter and integral track mounted driver
  • Optional honeycomb lens available
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI94
Icon type Beam Angle var WB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Trim Colour
Black|
White
Dimensions⌀62 X 185 (H) mm
Weight685 g
Tilt Angle90°
Rotation350°

General Characteristics

Family
Track Spot
Surface
Ceiling
Mounting
Track Mounted
Ingress ProtectionIP20

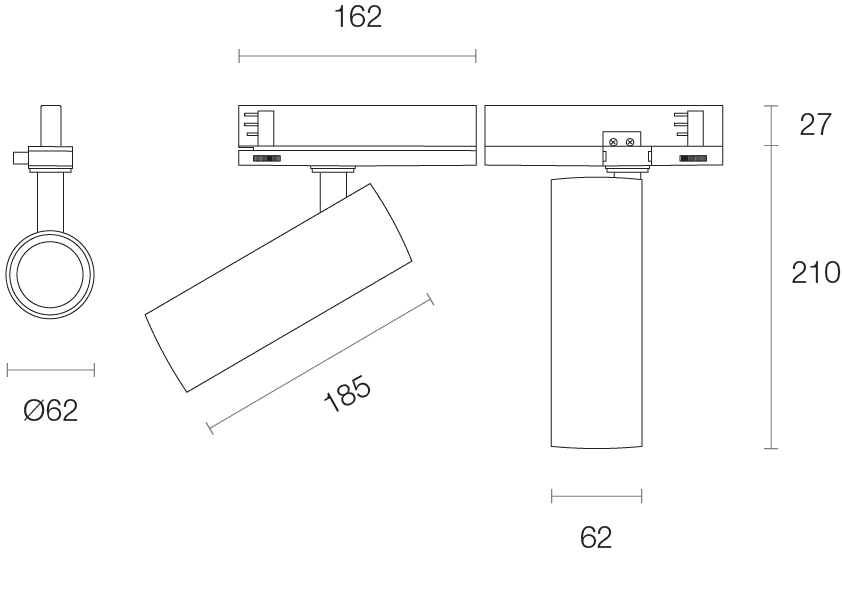

Dimensions (mm)

XTN15 E 2x

Technical Characteristics*

LED Power15W
LED TypeCOB
LED Lumen Output*2025 lm
Luminous Flux*1429 lm
Efficacy*85.06 lm/W
Colour Temperature
2700K|
3000K|
3500K|
4000K
Colour Technology
CRI 94+ Standard|
CRI 98+ Optisolis
Colour DeviationSDCM ≤ 3
Lifetime60,000 hours (L80 B10)
Beam Angle
Wide|
Narrow|
Medium
System Power16.8W Typical
Driver ModelTrend 150423-350 (Non-dim)
Input220-240V AC 50/60 Hz
Output25-42V DC 350mA
Power Factor>0.98
Protection
OVP,
OTP,
OCP,
SCP,
OPP
Driver
Non-dimmable|
DALI
Accessories
Honeycomb Lens
* Based on: 4000K, CRI 94+ Standard, Wide, Non-dimmable
