Weatherproof ZWP22

Weatherproof ZWP22

15W IP65 & IK10 Rated Weatherproof Batten
Options

  • Surface mounted weatherproof LED batten with durable polycarbonate body and tamper-proof stainless steel clips, providing a high level of impact resistance and ingress protection
  • Optional battery backup kit available in maintained or non-maintained variants, meeting AS/NZS 2293 compliance
  • CRI 90+ available in 2700K, 3000K, 4000K and 5000K CCT options
  • Supplied with an integral driver
Product Standards
Icons Technical RGB Trim White Colour
Icons Technical RGB LEDSMD Colour
Icon type CRI var CRI90
Icon type Beam Angle var VW
Icon IP65
Icons Technical RGB IK10 Bang Black
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions660 (L) X 140 (W) X 95 (H) mm
Weight2000 g

General Characteristics

Family
Weatherproof
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP65
Impact ResistanceIK10

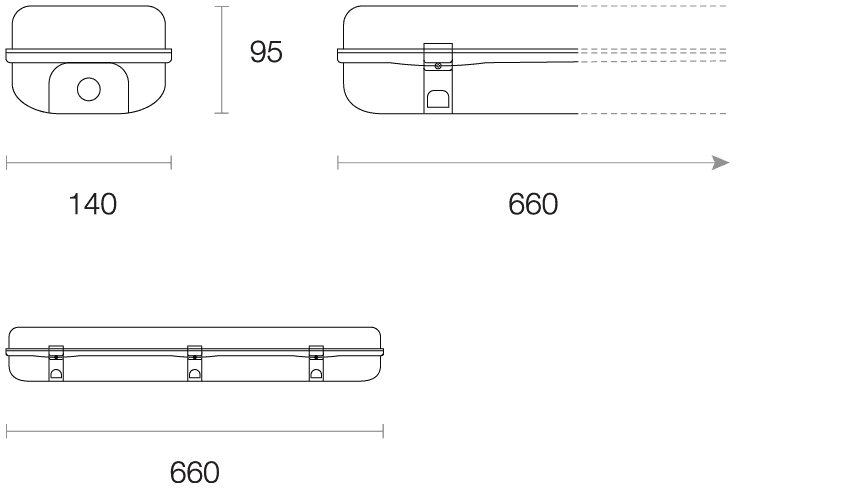

Dimensions (mm)

ZWP22 2x

Technical Characteristics*

LED Power15W
LED TypeSMD
LED Lumen Output*2232 lm
Luminous Flux*1572 lm
Efficacy*92.47 lm/W
Colour DeviationSDCM ≤ 3
Lifetime50,000 hours (L80 B10)
System Power17W Typical
Driver ModelTrend 150232 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
