Surface XSO20

Surface XSO20

20W Surface Mounted Compact Downlight
Options

  • Surface mounted compact LED downlight, manufactured with an aluminium body and powder coat finish
  • Available with a comprehensive range of accessories, catering for a variety of lighting demands
  • CRI 90+ available in 2700K, 3000K and 4000K CCT options
  • Supplied with an integral driver
Product Standards
Icon type Trim var Black
Icons Technical RGB LEDCOB Colour
Icon type CRI var CRI90
Icon type Beam Angle var MB
Icon IP20
Icons Technical RGB Australian Red

Physical Characteristics

Dimensions⌀83 X 183 (H) mm
Weight867 g

General Characteristics

Family
Surface
Surface
Ceiling
Mounting
Surface Mounted
Ingress ProtectionIP20

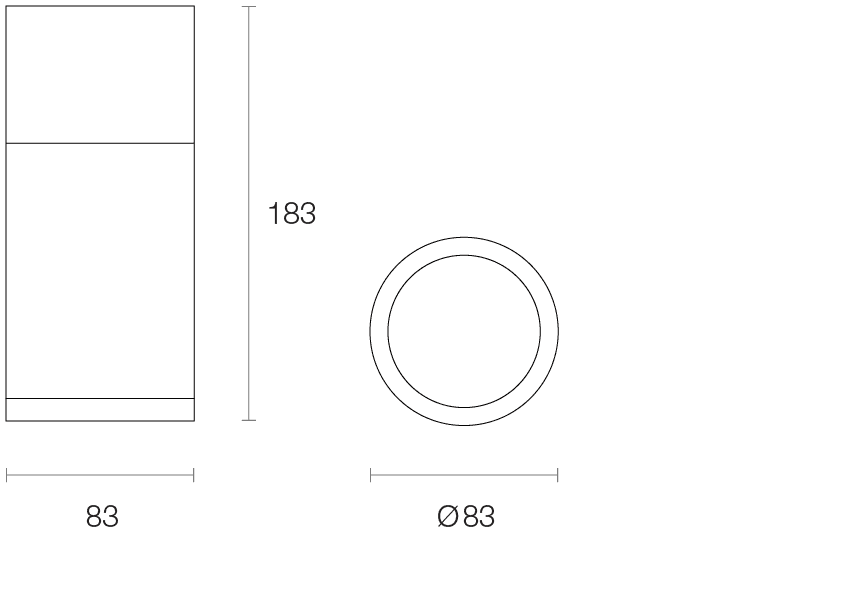

Dimensions (mm)

XSO20 2x

Technical Characteristics*

LED Power20W
LED TypeCOB
LED Lumen Output*3132 lm
Luminous Flux*2527 lm
Efficacy*108.92 lm/W
Colour DeviationSDCM ≤ 2
Lifetime50,000 hours (L80)
System Power23.2W Typical
Driver ModelTrend 150417-500 (Non-dim)
* Based on: 4000K, CRI 90+ Standard
